SAMMLER EVO series
Family Size
EVO300/50
High performance and high aesthetics in a unique solar water heater!!!
The EVO300/50 model has a 300 liter capacity tank, closed circuit, ensuring resistance to extreme frost conditions. It is equipped with 2 collectors of 2.25 m² of selective area each, achieving the maximum absorption of solar energy.
The solar collector has been tested for its performance and reliability in Switzerland (Institut fur Solartechnik SPF, Rapperswil) and has been certified by various certification bodies worldwide such as DIN Certco (Germany), DCL (United Arab Emirates),SII (Israel), KSA (S. Korean)etc.
Family Size
300lt
Capacity
2
Collectors
10years
Warranty
SERIES "EVO300/50"
OPTIONS
PLACEMENT OF ELECTRONIC ANODE ROD FOR ADDITIONAL PROTECTION
INSTALLATION OF EXTRA HEAT EXCHANGER FOR CONNECTION OF THE SOLAR PANEL TO THE RADIATOR
SERIES "EVO300/50"
SPECIFICATIONS
| SOLAR WATER HEATER SERIES EVO | |
|---|---|
| Model | EVO300/50 |
| Type | Closed circuit |
| Placement | 25° |
| Collectors number | 2ps |
| TANK | |
| Model | XR300 |
| Energy class | C |
| Capacity | 300l |
| Heat exchanger type | Mantle |
| Heat exchanger capacity | 15,1 l |
| Heat exchanger area | 1,94 m² |
| Weight | 107kg |
| Internal protection | Thick enamel 250-350μm |
| Anti Corrosion protection | Magnesium rod Ø22x400mm |
| Insulation | Polyurethane |
| Insulation thickness | 50mm |
| Insulation density | 42kg/m³ |
| Internal trunk material | S300EK AM FCE – 2,5mm |
| Heat exchanger construction material | S235JR – 1,5mm |
| Outer casing material | GRANITE® HDX – 0,5mm |
| Auxiliary source | Electrical resistance – 3,5kW |
| Connections | 3/4” Female thread |
| COLLECTOR | |
| Model | ARIS2504 |
| Total area | 5,84m² |
| Apperture area | 5,40m² |
| Absorber surface | 5,36m² |
| Weight | 110kg |
| Frame | Aluminum profile 1,3mm – RAL7038 |
| Collector’s back | Al-ZN 0,5mm |
| Absorber | ALANODE Mirotherm – 0,4mm |
| Absorption | 95% |
| Emmisivity | 5% |
| Header | Ø22mm |
| Risers | Ø8mm – 9ps |
| Solar crystal | 3,2mm — 91,8% absorption |
| Insulation | stone wool |
| Insulation thickness | 40mm |
| Insulation density | 40kg/m³ |
| SUPPORT BASE | |
| Model | SB300-LPNV |
| Construction material | Zn – 2,5mm |
| CONNECTION SET | |
| Model | IKEVO2-5 |
| Water safety valve | 10bar |
| Closed circuit safety valve | 3bar |
| Type of accessories | Brass- Mechanical tightening |
| Connecting pipes | Stainless flexible DN16 |
| Insulation | 9x22mm protection UV |
| Thermal medium | CLARIANT Antifrogen SOL HT |
| Quantity | 5l (100% condensation) |
SERIES "EVO300/50"

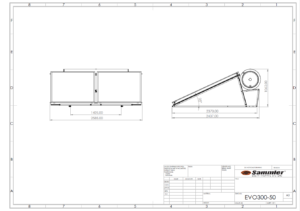

DIMENSIONS
EVO300/50
SERIES "EVO300/50"
RELEVANT DOCUMENTS
BROCHURES
INSTRUCTIONS
Δοκιμή Απόδοσης / Test Report ARIS2004
1 file(s) 252.58 KB
Οδηγίες Χρήσης / Manual_IK-EVOxxx
1 file(s) 1.21 MB
Οδηγίες Εγκατάστασης / Manual_IK-XSxxx_(EVO)R3
1 file(s) 999.97 KB
Οδηγίες_Εγκατάστασης / Installation Manual XR_series
1 file(s) 825.72 KB
Οδηγίες Χρήσης / Manual SBxxx-LPNV
1 file(s) 1.32 MB
TEST REPORTS
Δοκιμή Απόδοσης / Test Report ARIS2004
1 file(s) 252.58 KB
Δοκιμή Απόδοσης / Test Report ARIS2504
1 file(s) 257.82 KB
LEGAL DOCUMENTS
Δελτίο Προϊόντος / Product Fiche EVO_gen2
1 file(s) 302.29 KB
Δελτίο Προϊόντος / Product Fiche XR
1 file(s) 423.90 KB
Δελτίο Προϊόντος Συλλεκτών / Product Fiche Collectors
1 file(s) 423.75 KB
Δήλωση Συμμόρφωσης / Declaration of Conformity_2024
1 file(s) 657.32 KB
Δήλωση Συμμόρφωσης / Declaration of Conformity Tanks_2024
1 file(s) 376.85 KB
CERTIFICATES
Πιστοποιητικό / Certification Solar Keymark ARIS2004-2304-2504_
1 file(s) 974.60 KB
