SAMMLER series XR-H
XR200-21H
“Only the best is good enough!
The XR solar water heater combines advanced technology with elegant, modern design, delivering high performance, efficiency, and everyday comfort.
The XR200-21H model features a 200-liter tank, while the horizontal selective-surface collector with an area of 2.12 m² ensures maximum solar energy absorption, even in regions with limited sunlight. The collector’s horizontal design enhances the system’s aesthetic appeal. The XR provides a reliable and consistent supply of hot water at minimal cost, making it a dependable and long-term investment for every household.”
200lt
Capacity
1
Collectors
10years
Warranty
SERIES XR200-21H
OPTIONS
INSTALLATION OF SOLAR WATER HEATER
IN A CERAMIC ROOF
INSTALLATION OF SIDE COVERS
PLACEMENT OF ELECTRONIC ANODE ROD
FOR ADDITIONAL PROTECTION
SERIES XR200-21H
SPECIFICATIONS
| SOLAR WATER HEATER SERIES XR-H | |
|---|---|
| Model | XR200-21H |
| Type | Closed circuit |
| Placement | 00° – 44° |
| Collectors number | 1p |
| TANK | |
|---|---|
| Model | XR200 |
| Energy class | Β |
| Capacity | 202l |
| Heat exchanger type | Mantle |
| Heat exchanger capacity | 10,92l |
| Heat exchanger area | 1,07m² |
| Weight | 85kg |
| Internal protection | Thick enamel 250-350μm |
| Anti Corrosion protection | Magnesium rod Ø22x400mm |
| Insulation | Polyurethane |
| Insulation thickness | 50mm |
| Insulation density | 42kg/m³ |
| Internal trunk material | S300EK AM FCE – 2,5mm |
| Heat exchanger construction material | S235JR – 1,5mm |
| Outer casing material | GRANITE® HDX – 0,5mm |
| Auxiliary source | Electrical resistance – 3,5kW |
| Connections | 3/4” Female thread |
| COLLECTOR | |
|---|---|
| Model | ARIS2004Η |
| Total area | 2,11m² |
| Apperture area | 1,92m² |
| Absorber surface | 1,91m² |
| Weight | 42kg |
| Frame | Aluminum profile 1,3mm – RAL7038 |
| Collector’s back | Al 0,4mm |
| Absorber | ALANODE Mirotherm – 0,4mm |
| Absorption | 95% |
| Emmisivity | 5% |
| Header | Ø22mm |
| Risers | Ø8mm – 18τεμ |
| Solar crystal | 3,2mm — 91,8% absorption |
| Insulation | stone wool |
| Insulation thickness | 40mm |
| Insulation density | 40kg/m³ |
| SUPPORT BASE | |
|---|---|
| Model | SB200-21H / TK160-200ΗΒ |
| Construction material | Zn – 2,5mm |
| CONNECTION SET | |
|---|---|
| Model | IKXR1-2 |
| Water safety valve | 10bar |
| Closed circuit safety valve | 3bar |
| Type of accessories | Brass- Mechanical tightening |
| Connecting pipes | Stainless flexible DN16 |
| Insulation | 9x22mm protection UV |
| Thermal medium | CLARIANT Antifrogen SOL HT |
| Quantity | 2l (100% condensation) |
SERIES XR200-21H

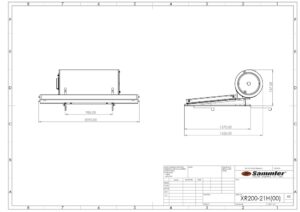

DIMENSIONS
INSTALLATION OF SOLAR WATER HEATER
IN A CERAMIC ROOF
INSTALLATION OF SOLAR WATER HEATER
44 DEGREE INCLINE
SERIES XR200-21H
RELEVANT DOCUMENTS
BROCHURES
INSTRUCTIONS
TEST REPORTS
LEGAL DOCUMENTS
CERTIFICATES
