“neo” Series
High performance forced circulation system, fully autonomous as no electricity is required.
The collectors are of ALTER series, meander type, with high selective coating offering high efficiency comparing to the conventional harp type. Available in 2 different sizes of 2,12 m² and 2,52 m². In total 6 different models are available.
The tank is available in horizontal (SV series tank) or in vertical (HP series tank) and thanks to special design the tank may installed outdoor or indoor. The available sizes are of 200l and 300l. All tanks are equipped with electrical backup source.
The circulation of the thermal medium between collectors-tank is achieved by using a DC pump which is powered by a photovoltaic panel. The flow is controlled through sensors located inside the collector. Therefore no control unit is required.
Family Size
"neo" Series
OPTIONS
ELECTRICAL RESISTANCE CONNECTION
PLACEMENT OF ELECTRONIC
ANODE ROD FOR ADDITIONAL PROTECTION
COLLECTOR PLACEMENT - TANK
COLLECTOR TILES – EXTERNAL TANK
COLLECTOR TILES – INTERNAL TANK
COLLECTOR TILES – TANK TILES
TILES COLLECTORS – CEILING TANK
ROOF COLLECTORS – ROOFTOP TANK IN THE DISTANCE
ROOF COLLECTORS – ROOF TANK
"neo" Series
SPECIFICATIONS
| neo200-21 | neo200-25 | neo200-42 | ||
|---|---|---|---|---|
| Tank type | neo200 | neo200 | neo200 | |
| Energy efficiency | B | B | B | |
| External diameter | mm | 580 | 580 | 580 |
| Height | mm | 1300 | 1300 | 1300 |
| Electrical resistance | 3,5kW-1ph | 3,5kW-1ph | 3,5kW-1ph | |
| Collector type | ALTER2504 | ALTER2504 | ALTER2004 | |
| Collectors number | 1 | 1 | 2 | |
| Total area | m² | 2,12 | 2,52 | 4,24 |
| Apperture area | m² | 1,92 | 2,3 | 3,84 |
| Absorber surface | m² | 1,91 | 2,28 | 3,82 |
| Collector support base | SB1 x 1 | SB1 x 1 | SB2 x 1 | |
| Tank support base | SBneo200 | SBneo200 | SBneo200 | |
| Collector connection fittings | 1 | 1 | 1 | |
| neo300-25 | neo300-42 | neo300-50 | ||
| Tank type | neo300 | neo300 | neo300 | |
| Energy efficiency | C | C | C | |
| External diameter | mm | 580 | 580 | 580 |
| Height | mm | 1725 | 1725 | 1725 |
| Electrical resistance | 3,5kW-1ph | 3,5kW-1ph | 3,5kW-1ph | |
| Collector type | ALTER2504 | ALTER2004 | ALTER2504 | |
| Collectors number | 1 | 2 | 2 | |
| Total area | m² | 2,52 | 4,24 | 5,04 |
| Apperture area | m² | 2,3 | 3,84 | 4,6 |
| Absorber surface | m² | 2,28 | 3,82 | 4,56 |
| Collector support base | SB1 x 1 | SB2 x 1 | SB2 x 1 | |
| Tank support base | SBneo300 | SBneo300 | SBneo300 | |
| Collector connection fittings | 1 | 1 | 1 |
"neo" Series
DIMENSIONS
ALTER Series
NEO Series

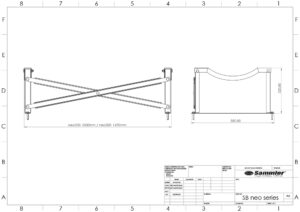

SB NEO Series
